Project Description

3LPP triple layer of polypropylene

V.I.P. Pesaro is one of the few companies able to offer the 3LPE coating on pipes as well as on custom pieces.
The coating is a multilayer composed of a primer fusion bonded epoxy (FBE) followed by an adhesive copolymer and another layer of polyethylene which provides resistance and long-lasting protection.
The system ensures the applicability of the sintered coating also on pieces with special shapes.

Long-term anticorrosive protection
The FBE primer offers an excellent adhesion to the substrate and provides a long-term corrosion protection for pipelines operating at moderate temperatures. It also ensures resistance to cathodic disbondment so the total cost of cathodic protection of the pipeline decreases.

Very good mechanical protection
The layer of applied polypropylene protects the pipeline during transport and installation, thus reducing repair costs and guarantees underground protection against mechanical, chemical and abrasive attacks.
The thicker the applied polyethylene the higher the obtained mechanical protection.

Other advantages of the sintered system
V.I.P. using this special application technique is able to coat also specific pieces with special shapes. (bends, tees, reducers, joints, etc.).
There aren’t any limitations about the amount of pieces to coat, even the single piece can be treated.
3LPP can be applied in different thicknesses to meet the requirements of the project specifications.

  • Small and large pipes
  • Standard fittings
  • Wide radius bends
  • Special fittings

Pipes:
Diameter from 1/2” to 120”
Maximum unit length 13.5 meters
Maximum unit weight 15,000 kg.

Fittings and/or special pieces:
Curves, T-shapes, reductions, flanges, etc.
Maximum size 3.0 x 3.0 x 13.5 meters
Maximum unit weight 15,000 kg.

Joints and/or custom pieces:
Bends, tees, reducers, flanges, etc.
Maximum unitary size 3,0 x 3,0 x 13,5 m
Maximum thickness of the coating 3,5 mm.

  • Preparing and testing: oven pre-heating (if required), blasting, testing
  • Anticorrosive coating / Sintering: oven pre-heating, FBE spray powder
  • Adhesive layer: spray adhesive, oven baking
  • Top coat: PP spray powder, air cooling
  • Check, storage and delivery: testing, packing, ready for shipment

*Sintering is the coating process where a coating powder is sprayed on a preheated piece. Thanks to the heat emitted from the surface the powder fuses creating an homogeneous and continuous layer.

Selected from among the top qualified international brands by the biggest companies.
DIN 30670
UNI EN ISO 21809-1
NF A 49-710
ANSI/AWWA C215

for additional standards, please contact the technical office.

ISO 9001, ISO 14001, OHSAS 18001
  • Specific Gravity PE: 0.943 g/cm3
  • Elongation at Break ISO 527: > 300%
  • Hardness: Shore D 52
  • Minimum recommended temperature: – 40°C
  • Maximum recommended temperature: + 80°C

3LPP triple layer of polypropylene

3LPP triple layer polypropylene
3LPP triple layer polypropylene

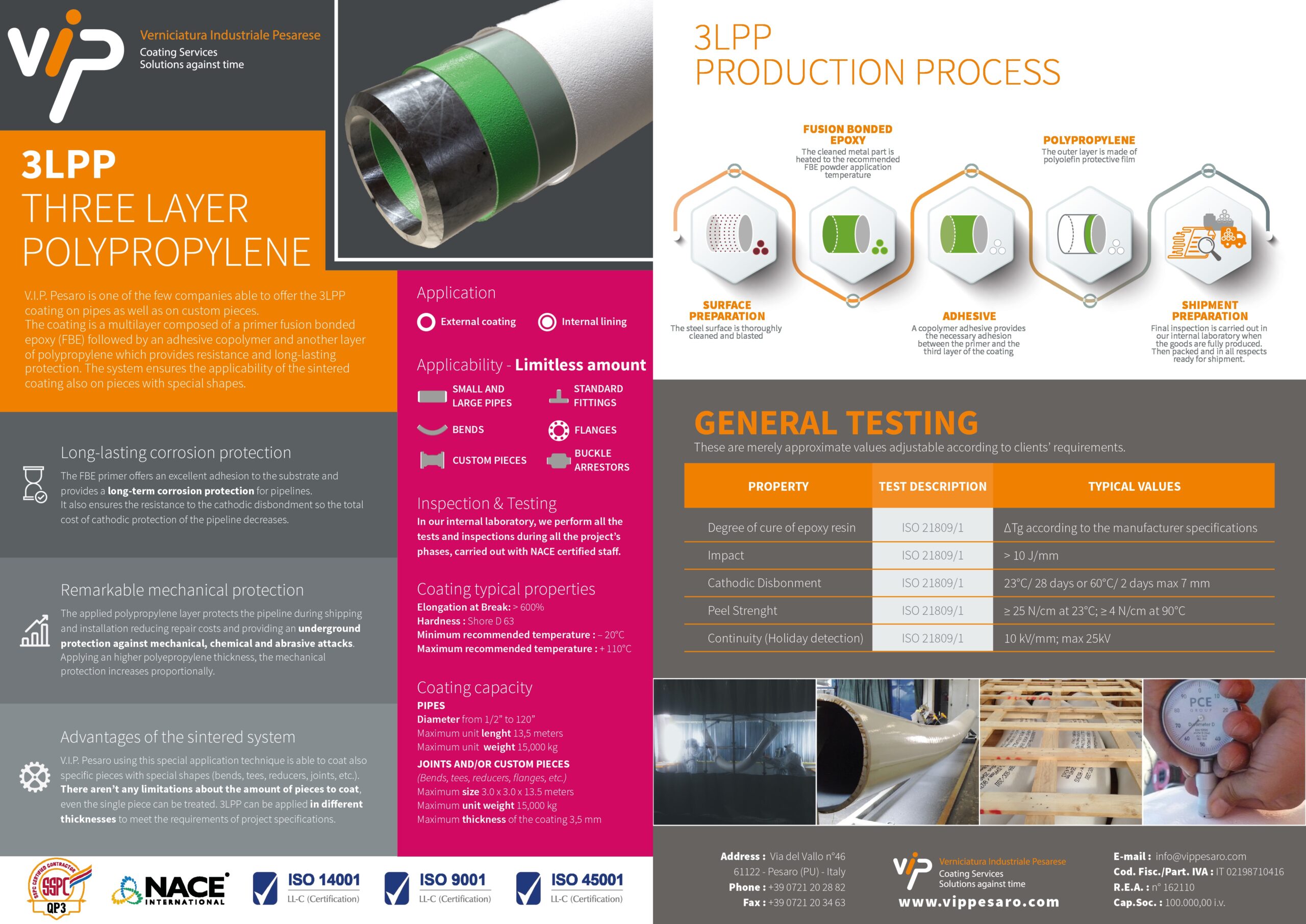

3LPP Production system – From analysis to shipment

V.I.P. Pesaro takes care of customers needs designing custom coatings for special pieces in order to always satisfy clients expectations. Since more than ten years we are providing our protective solutions worldwide.
We offer specific consultancy since the analyses of project requirements. We design the best solution selecting with the client the most suitable coating and the best applicable technique. After realization, we carry out laboratory tests to truly guarantee a perfect results.

3LPP Product specifications

3LPP layers: Polypropylene, Adhesive Copolymer, Fusion Bonded Epoxy

3LPP layers: Polypropylene, Adhesive Copolymer, Fusion Bonded Epoxy

PropertyTest DescriptionTypical Values
Degree of cure of epoxy resinDIN 30670∆Tg according to the manufacturer specifications
ImpactDIN 30670≥ 7 J/mm
Cathodic DisbondmentDIN 3067023°C/ 28 days or 60°C/ 2 days max 7 mm
Peel StrenghtDIN 30670> 35 N/cm at 23°C; < 15 N/cm at 70°C
3LPP Three layers polyethylene

See our online presentation, please CLICK HERE TO READ IT.

FBE (Fusion Bonded Epoxy) is the best epoxy resin powder applied on pre‐heated surfaces. Thermosetting coating designed for the anticorrosive protection of articles destined to immersion or buried services in oil and gas sector and in the protection of the water pipeline.
